Boat Latch Mounting Kit For 4" Trailer Brackets

If the inside width of the roller wheel bracket at the front of your trailer is 4" wide, we suggest purchasing this kit to ensure a proper fit with the Catch-N-Release latch.

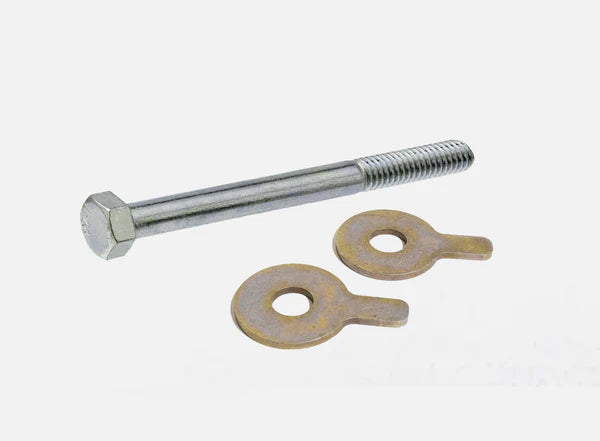

Kit includes:

• (1) 1/2 x 5 1/2" mounting bolt
• (2) 1/8" shim washers

The body of the XD375 latch model is 3⅝" wide. The included spacers can be placed between the body of the latch and the inside edges of the roller wheel bracket on your trailer to ensure a snug fit.

Due to the thickness, stiffness, and width of some trailer brackets, the mounting bolt shipped with all latches may not be long enough to work with all 4" brackets. The included 5 1/2" bolt will be long enough to fit a 4" bracket. The mounting bolt is Grade 5 and Zinc Plated.

The kit does not ship with a locking nut; use the one that ships with the latch. A mounting bolt and nut will be preinstalled on all latches when purchased. Replace the preinstalled mounting bolt with this longer mounting bolt when installing.
